The new Across International AccuTemp-450 vacuum oven now features stainless steel internal tubing that is 2.5X larger than the previous one, for a quicker vacuum purge and release. We have also added an additional door handle to provide a better sealing on the door gasket.

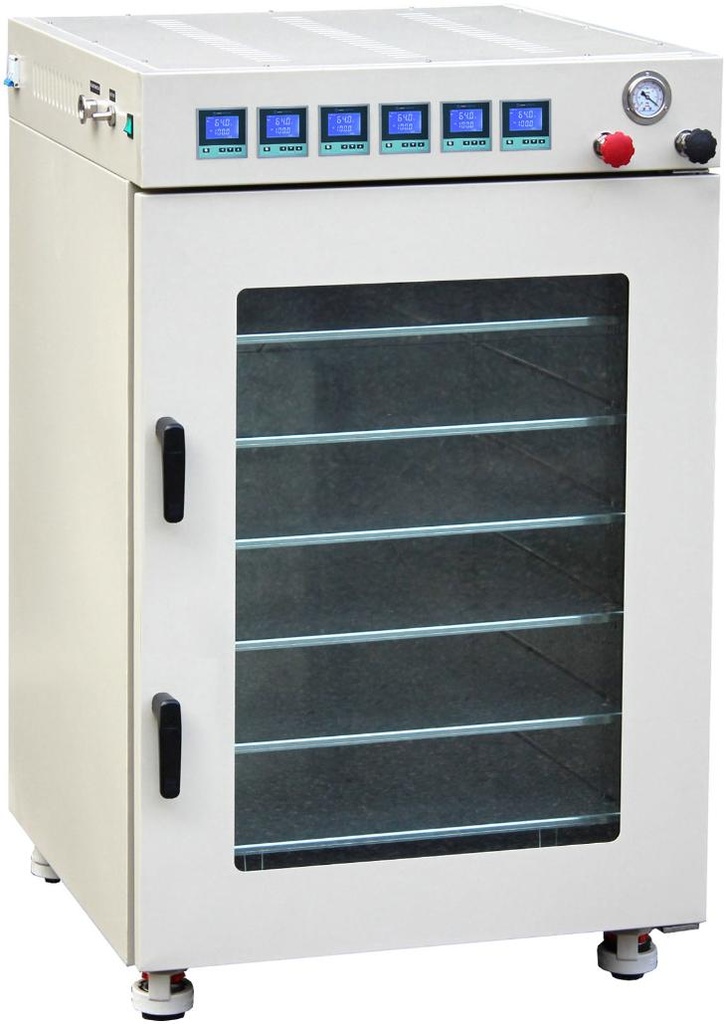

The AccuTemp-450 series digital vacuum oven features a gigantic 450 liters easy-to-clean stainless steel chamber with a large 3/4" tempered glass safety window. With our new internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
Six well thermo-conductive aluminum heated shelves with individual in-shelf temperature sensor, heater and digital temperature controller.
All stainless steel internal vacuum tubing and compression fittings that holds vacuum 10 times longer and deeper than with rubber tubing. They also provide you the most sanitary working environment, while last for decades without maintenance.
Oil-filled mechanical vacuum gauge ensures the most accurate and stable measurements.
Built-in secondary over-temp dial for added protection.
Adjustable vacuum and vent port with needle valves gives you control over vacuum and vent rates, while also largely enhanced durability.
3rd gen low proportional gain temperature controller keeps your oven temperature within +/- 1°C accuracy, in either °F or °C.
Built-in white LED lights
Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
Dual layer observation window with 3/4" tempered safety glass.
Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
Built-in station-able swivel casters with locks for ultra-portability.
All ovens shipped from our Nevada or New Jersey locations for quick delivery, and come with one year warranty and lifetime US-based parts and service support.
Guaranteed US based phone and email assistance within 30 minutes from our engineers.
Manufactured in accordance with
ISO 12100-1:2003, ISO 12100-2:2003
EN1050:1996, EN294:1992, EN60204-1:2006
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
220-240V +/-10% 50/60Hz 1-PH 13.6A, 3000 watts Heaters: 500 watts x 6, built into 6 aluminum shelves, for the fastest, most energy effcient and uniform heating.
Dimensions: 650 x 760 x 900 mm (WxDxH) Material: Stainless steel Capacity: 450 liters
Controller: 3rd gen low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 250°C Display units: Fahrenheit or Celsius Accuracy: +/- 1°C Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes
Ultimate vacuum level: better than 500 microns / 0.066 kPa (may vary based on your altitude, click here to learn more) Mechanical vacuum gauge range: 0 to 30 inch mercury Mechanical vacuum gauge type: oil-filled Vacuum port: KF25 flange x 1 Vent port: 5/8" hose barb x 1
Unit: 322 kg, shipping: 426 kg
Unit: 840 x 940 x 1320 mm Shipping: 1090 x 1020 x 1520 mm
Heated shelves: 6 non-removalbe aluminum shelves, 640 x 740 mm (WxD) each Optional stackable aluminum shelves: 640 x 740 x 60 inches (WxDxH) Distance between shelves (without stackable shelves): 130 inches Distance between shelves (with 6 stackable shelves): 60 inches Total area without stackable shelves: 731 x 6 = 30 sq ft or 2.8 sq meters Total area with 6 stackable shelves: 731 x 12 = 60 sq ft or 5.6 sq meters
Door gasket material
1/2" (12mm) tempered safety glass
Built-in circuit breaker, overheat protector
White LED (pre-installed)
Approximate time to reach full vacuum
With Edwards E2M28 21 cfm pump: 8 minutes With Ai SuperVac 11.3 cfm pump: 11 minutes
