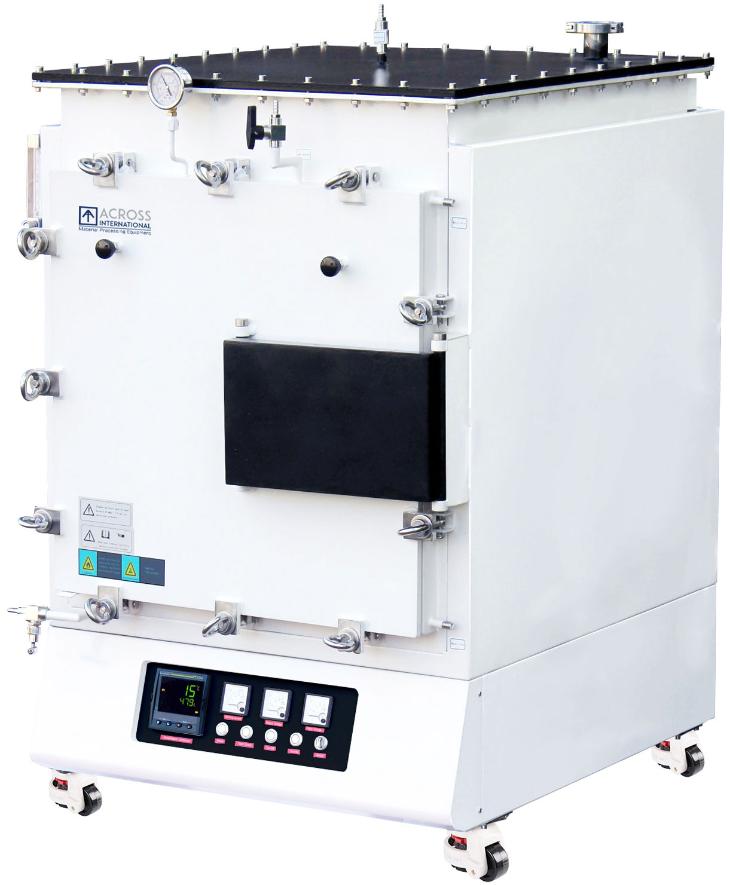

his GCF1200 series controlled atmosphere muffle furnace is made of the highest quality parts, equating to precise, reliable results each and every time you use it. Sweden’s famous Kanthal heating elements inhabit its core, embedded within rugged Mitsubishi alumina fiber insulation. The impressive heat generated is contained in a double-walled, steel internal housing. Besides this, a high temperature silicone gasket seals the furnace door. But it goes beyond that. A built-in, stainless steel, water-cooling panel protects the door’s sealing gasket when the furnace is under heavy use.
A Eurotherm 3204 5 on-board process recipes (48 parameters per recipe) digital controller offers perfect temperature control. On top of that a 28-segment, self-tuning, PID control provides optimal thermal processing, while minimizing overshoot. One exciting option, you can directly control and monitor the furnace from your PC, through an RS485 digital communications port and USB adapter. You can even save or export test results. A built-in ammeter and dual voltmeters allow for easy monitoring and troubleshooting, while a type K thermocouple ensures a long lifespan.
Multiple gas inlets and outlets are included. Each has a stainless-steel ball valve. Inbound and outbound gas flows are controlled by a flow meter. Outlets can even be ignited in order to burn off gas. One important feature, multiple atmosphere processes are possible in a single cycle. This furnace comes with two safety features: overheat protection and power failure protection. It and all of our furnaces are CE compliant.
The benefits of an controlled atmosphere furnace
An atmosphere furnace provides the perfect environment for various procedures in many laboratories, providing the controlled temperature and atmosphere specific projects require. The controlled atmosphere is desired to complete tasks that require exact temperatures with no room for error. This is the best way to ensure the successful outcome of your project because it is sealed tightly to ensure the proper environment.
One of the main components of the atmosphere furnace is the correct mixture of gases. The precise measurement of each gas is essential to the success of your project. You can use a separate chamber to mix the gases, which are then pumped into the furnace chamber where the work will be completed when they are done mixing. It is essential that the separate chamber that holds the gases does not receive any outside air because it could throw off the gas mixture and render your project useless.
Proper temperature control is vital to the success of your project as well. Temperatures that are too high or too low will cause problems with the process and could cost your company a significant amount of money. Across International furnaces come with built-in 28-segment PID digital temperature controller for accurate monitoring and consistency.
Multiple gas inlets and outlets with stainless steel ball valves. Flow meter to control inbound and outbound gas flows. Outlets can be ignited to burn off gas.
Furnace chamber is welded and oil leak tested to ensure air tightness. Furnace door is sealed with high temperature silicon gasket.
Built-in stainless steel water-cooling panel protects door sealing gasket when furnace is under heavy use.
Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
Built-in computer interface.
Long life type K thermocouple.
Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions.
Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
220-240V 50Hz Single phase / 380-415V 50Hz Three phase
Heating element type
Kanthal (Sweden) resistance coil wire
Eurotherm 3204 5 on-board process recipes (48 parameters per recipe)
Maximum heating rate
15°C / min
Mitsubishi (Japan) high quality 1500 grade polycrystalline alumina fiber
1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)
Ultimate vacuum level
< 1 kPa
Not to exceed 20 kPa / 150 torr / 3 psi
Temperature controller precision
Air, N2, H2 (wet or dry), Ar, NO2, CO, CO2, He, Ne, rough vacuum, etc.
Chamber capacity (litres)
Chamber size (DxWxH)
1-Phase 41AMP or 3-Phase 13AMP
3-Phase 21 AMP
3-Phase 30 AMP
Furnace dimensions (WxDxH)
Shipping dimensions (LxWxH)
Net weight (kg)
Shipping weight (kg)
How to Program Across International Furnaces
GCF1200 controlled atmosphere furnace
Type K thermocouple
Alumina cushion block
Furnace door block
Stainless steel tongs
High temperature Al2O3 alumina crucible
USB/RS485 computer interface kit
Furnace operation manual
Shimaden fp93 temperature controller manual & software
